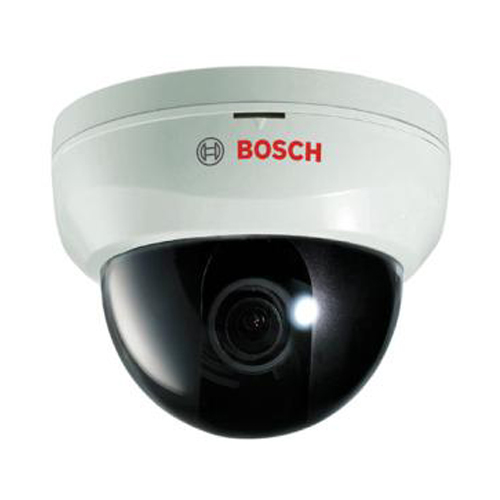

| VDC-230F04-10 | Technical Specifications |
| System |
PAL |
| Effective pixels (H x V) |
752 x 582 (PAL) |
| Image Sensor |
1/3-inch High sensitivity CCD |
| Video Output |
Composite: 1 Vpp, 75 Ohm |
| Sync. System |
Internal sync., Line-lock |
| S/N Ratio (sharpness, AGC off) |
50 dB min. |
| Horizontal resolution |
570 TVL sensor resolution |
| Minimum Illumination (F2.0, 30IRE, AGC max.) |
0.15 lx (color) |
| ESC |
1/50 – 1/120,000 |
| Manual Shutter |
1/50(60), 1/100(120), 1/250, 1/500, 1/700,1/1k, 1/1.6K, 1/2.5K, 1/5K, 1/7K, 1/10K,1/30K,1/60K, 1/120K |
| DNR |
Off, Low, Middle, High |
| White Balance |
ATW, Manual, Push |
| SBLC |
Off, Low, Middle, High |
| AGC |
On, Off |
| Day/Night |
Auto, Color, B/W, Ext. |
| Burst |
On, Off |
| Motion detection |
On, Off (4 programmable zones) |
| Privacy |
On, Off (4 programmable zones) |
| Mirror |
On (horizontal), Off |
| Sharpness |
1 ‑ 20 |
| Gamma |
0.35, 0.45, 0.6, 0.75 |
| OSD language |
English, Chinese |
| Lens type |
Manual lens |
| Supply Voltage |
12 VDC (±10%) |
| Power Consumption |
3.6 W max. / 0.3 A |
| Operating Temperature |
-10 °C to +50 °C (14 ºF to +122 ºF) |
| Operating Humidity |
30% to 80% RH |
| Storage Temperature |
-20 °C to +60 °C (-4 ºF to +140 ºF) |
| Storage Humidity |
20% to 90% RH |
