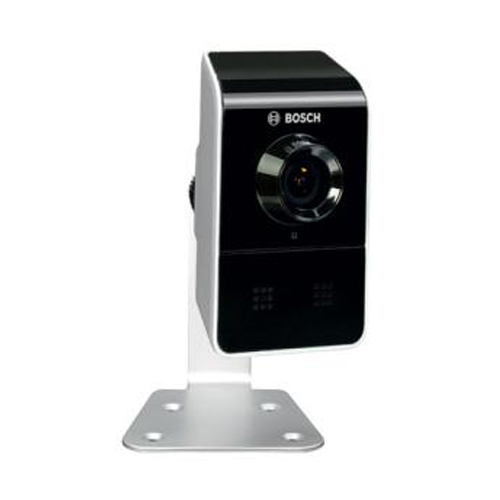

Micro Box Camera BOSCH รุ่น VPC-1055-F210

รหัสสินค้า :   001755
ลักษณะสินค้า :   กล้องทรงกระบอกมาตรฐานขนาดเล็ก ความละเอียด 650TVL เลนส์ฟิกซ์ ขนาด 2.5mm
การรับประกัน :   2 ปี
ราคา :   N/A

ราคารวมภาษี 0.00 บาท

หมายเหตุ: ขายส่งต่างจังหวัด ขายติดตั้งในกรุงเทพฯ ปริมณฑล
Social Share:
แชร์





รายละเอียดสินค้า

650TVL 960H MicroBox Camera, Fixed 2.5mm., ElectronicD/N, DWDR, DNR (Indoor)

arrowImage Sensor 1/4" CCD, 960H
arrowHorizontal resolution 650 TVL
arrowMinimum Illumination 0.01 lux F2.8, 30IRE)
arrowLens type Fixed board lens 2.5 mm, F2.8
arrowSignal-to-Noise Ratio 50 dB
arrowIR illumination 18 IR LEDs (850 nm)
arrowIR range 20 m
arrowDimensions 109 x 65 x 47 mm.
arrowSupply Voltage 12 VDC (±10%)
arrowPower Consumption 1.2 W max. / 0.1 A

This microbox camera is a ready-to-use, analog vid-eo surveillance camera for indoor use. The highperformance 960H 1/4‑inch CCD sensor provides aresolution of 720TVL.This compact and stylish camera is an ideal solu-tion for homes, small office and retail businessesby offering a cost-effective solution for a broadrange of applications. The camera is easy to installand has a handy menu system where functionssuch as privacy and motion detection zones can beset.

VPC-1055-F210 | Technical Specifications

Image Sensor 960H, 1/4" CCD, sensor resolution 720TVL
System PAL or NTSC
Total pixels (H x V) 1020 x 596 (PAL)
1020 x 508 (NTSC)
Effective pixels (H x V) 976 x 582 (PAL)
976 x 494 (NTSC)
Video Output Composite: 1 Vpp, 75 Ohm
Sync. System Internal sync.
S/N Ratio (sharpness,AGC off) 50 dB min.
Sensitivity (6500K,F2.8, 30IRE) 0.01 lx
Manual shutter 1/50 – 1/10,000 (PAL)
1/60 – 1/10,000 (NTSC)
Digital Noise Reduction 2DNR
White Balance ATW (1800 – 10500K), Push, User1, User2, AntiCR, Manual, Push lock
Light compensation OFF/BLC/HLC
Dynamic Range On, Off
AGC On, Off
Electronic Day/Night Auto, Color, B/W
Motion detection On, Off (4 programmable zones)
Privacy On, Off (8 programmable zones, 4 with motion areaon)
Mirror On (horizontal), Off
OSD language English, Japanese, German, French, Russian, Portu-guese, Spanish, Simplified Chinese
Lens type Fixed board lens 2.5 mm, F2.8
Lens view angle 85° (H), 64° (V)
Lens adjustment (2-ax-es) 60° tilt, 360° pan
Weight 96 g (0.21 lb)
Dimensions (L x W x H) 109 x 65 x 47 mm(4.29 x 2.56 x 1.85 in)
Supply Voltage 12 VDC
Power consumption 1.2 W max. / 0.1 A
Operating Temperature -20 °C to +45 °C(-4 ºF to +113 ºF)
Operating Humidity 20% to 90% RH
Storage Temperature -20 °C to +70 °C(-4 ºF to +158 ºF)
Storage Humidity 20% to 90% RH
